> I guess Iam cutting it..., EG33 Install
flmont
post Feb 20 2021, 10:43 PM
Post #1


Senior Member
***

Group: Members
Posts: 859
Joined: 21-October 08
From: Tucson,Az
Member No.: 9,676
Region Association: Southwest Region



I cant find a smaller Air intake,So I cant install my EG33 without cutting the Bulkhead,.I need about a 1.5" inboard and I then intend to use the Maddog -6 mount and bolt to the bulkhead,.Is this a reasonable path to take I've tried pounding in the bulkhead...its just not deep enoungh.Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Feb 21 2021, 05:32 AM
Post #2


Hey nice rack! -Celette
***************

Group: Members
Posts: 19,362
Joined: 30-December 02
From: Duluth MN.
Member No.: 43
Region Association: Northstar Region



I would try to move it back first. (IMG:style_emoticons/default/thisthreadisworthlesswithoutpics.gif) more photos would help.

If you have to move it forward here is what I did. I went back 2" first by relocating the transaxle mounts then rebuilt the forward bulkhead/firewall.

http://www.914world.com/bbs2/index.php?sho...ic=7725&hl=
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Feb 21 2021, 09:17 AM
Post #3


Advanced Member
****

Group: Members
Posts: 2,816
Joined: 25-August 18
From: The Motor City
Member No.: 22,428
Region Association: Galt's Gulch



I think I see the problem. . . . wrong engine in the car. (IMG:style_emoticons/default/happy11.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 21 2021, 09:19 AM
Post #4


Advanced Member
****

Group: Members
Posts: 3,609
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California



Couldn't you slice the snorkel off the side of that air box and modify it (or make something else) so it comes out the top then heads rearwards and lives under the engine lid grill? It'd put your intake in a better place to pick up cold air.

Just my $.02,but if you can cut up your bulkhead, I'm betting you'd be able to fab up something that solves this issue.

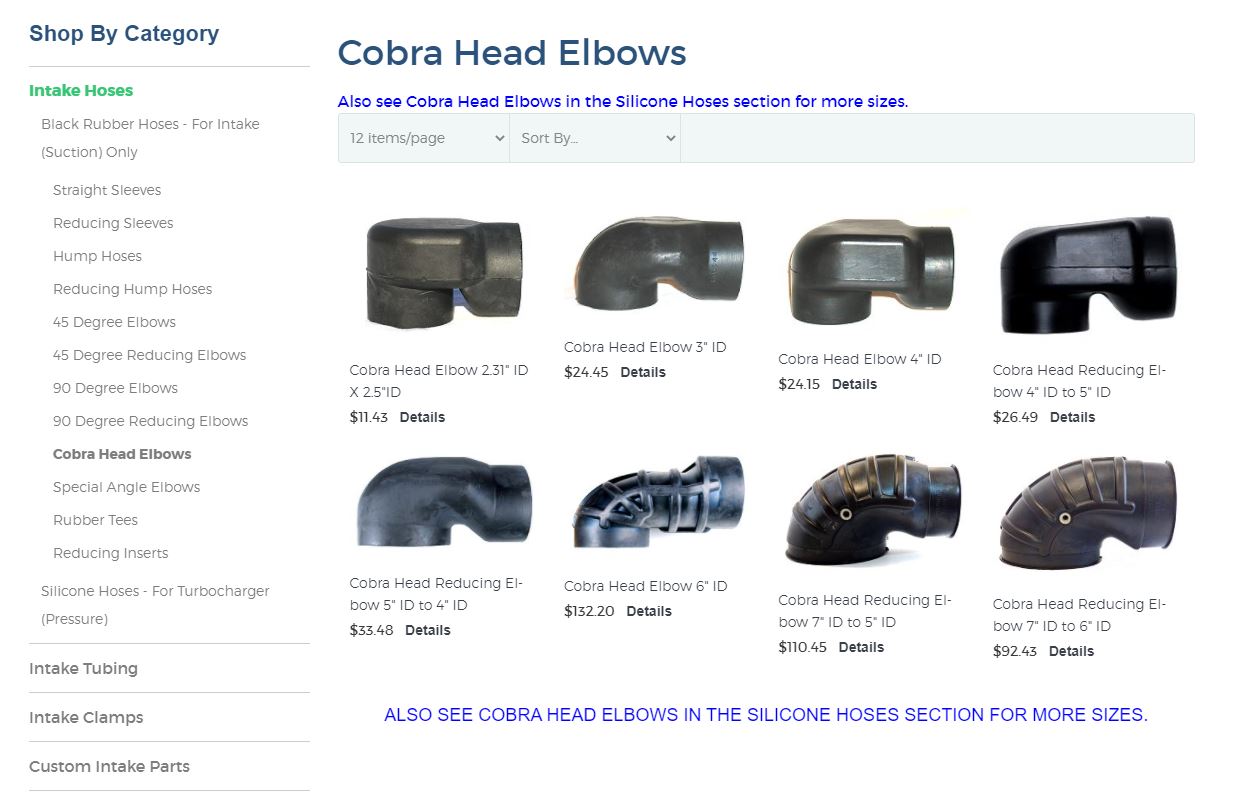

There are also these cobra head elbows that could maybe help?

https://www.intakehoses.com/cobra-head-elbows.html


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Feb 21 2021, 09:43 AM
Post #5


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 11,872
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California



Frank, I sent you a PM. Kent
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgp4591
post Feb 21 2021, 10:53 AM
Post #6


Advanced Member
****

Group: Members
Posts: 4,511
Joined: 1-August 12
From: Salt Lake City Ut
Member No.: 14,748
Region Association: Intermountain Region



QUOTE(flmont @ Feb 20 2021, 09:43 PM) *

I cant find a smaller Air intake,So I cant install my EG33 without cutting the Bulkhead,.I need about a 1.5" inboard and I then intend to use the Maddog -6 mount and bolt to the bulkhead,.Is this a reasonable path to take I've tried pounding in the bulkhead...its just not deep enoungh.Attached Image

How far back does Chris H have his engine? I know he's using a cradle but there's gotta be a way that you can move things around. How are your axles lining up?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris914n6
post Feb 21 2021, 12:49 PM
Post #7


Jackstands are my life.
****

Group: Members
Posts: 2,789
Joined: 14-March 03
From: Las Vegas, NV
Member No.: 431
Region Association: Southwest Region



2 180* mandrel bends or silicone hoses and relocate the box over the engine.

I'd move the engine back an inch or two before I'd cut firewall. The axles don't need to line up vertically. The CV angles just need to stay in spec during full susp travel.

V8 swaps move the trans back 1.5". My Nissan swap moved the trans forward 1.5". Not a problem.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Literati914
post Feb 21 2021, 02:58 PM
Post #8


Senior Member
***

Group: Members
Posts: 690
Joined: 16-November 06
From: Dallas, TX
Member No.: 7,222
Region Association: Southwest Region



(IMG:style_emoticons/default/popcorn[1].gif)
I have the same engine (though it needs some essential pieces to make complete/considering parting it).

The intake can be turned around, to put the snorkel on the other end, have you considered that?


.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgp4591
post Feb 21 2021, 03:13 PM
Post #9


Advanced Member
****

Group: Members
Posts: 4,511
Joined: 1-August 12
From: Salt Lake City Ut
Member No.: 14,748
Region Association: Intermountain Region



QUOTE(Literati914 @ Feb 21 2021, 01:58 PM) *

(IMG:style_emoticons/default/popcorn[1].gif)
I have the same engine (though it needs some essential pieces to make complete/considering parting it).

The intake can be turned around, to put the snorkel on the other end, have you considered that?


.

Then you end up cutting the rear bulkhead going into the trunk. That's why Frank turned around the upper manifold to begin with so there's no cutting involved.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Feb 21 2021, 04:59 PM
Post #10


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,892
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None



If you have to cut it to make it work, flip it to the passenger side, cut it there, and put the filter over there where the battery traditionally goes.

Then if you need to add a bit of sheet metal to the area, you can, and it only gets into your passengers seating area. I need my seat all the way back in my 914s. My passengers are normally compact than I.

You could also cut the tube and use a silicone tube to fit and then make your transition to the Air tube.

Or fabricate an new TB opening duct, and make it fit a bit better.

Another option is cut a notch in the duct and plastic weld a notch in it. Or find a section of plastic tube from another intake that goes oolong to allow the same area of airflow to pass thru, and plastic weld it up and in.

This is after the MAF so it will need to be sealed.

For east=y no car cutting method you can do at home.

I thought about making one out of carbon or fiberglass fiber prepreg tape. make the piece out of foam, wrap it in plastic tape, wrap the prepreg around my now buck, and you can clean it up if you want or leave it. Pretty easy and comes in all sorts of neon colors or white if you want. Example skip past the intro but you get an idea of how you can use this to your advantage.

Use foam as it is easier than doing this in metal tubing and then doing like they did in the video. Foam you can jut bust it out in pieces to get it out of the tube.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Feb 21 2021, 06:32 PM
Post #11


Life's been good to me so far.....
**********

Group: Admin
Posts: 12,474
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille



You could always take the manifold off and machine off a little bit of the throttle body mounting flange. From the looks of it in that picture, that would give you the clearance you need.


Clay
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
flmont
post Feb 22 2021, 10:16 AM
Post #12


Senior Member
***

Group: Members
Posts: 859
Joined: 21-October 08
From: Tucson,Az
Member No.: 9,676
Region Association: Southwest Region



Tygaboy..Iam trying to post a Pic of my inlet tube..for some reason It wont post,..Yet,.BUt I have about 4 hoses Iam susppose to connect to it and Iam not sure which ones I need or dont need ..Thats why I want to use stock parts for now if I can,.

MGP4591 ChrisH,..used a subaru transmisson Iam using the 901,.From Kent (Still thanking Kent for that generous sale).

Chris914N6,..I have heard that is ok to do and I may very well end up doung that,.Iam just very stubboran about that,.simply because I dont really know how to set that up,.I do have the Hyb.Renegades tranny blocks but seem's a little wonkie to install a tranny that way ( iam sure Iam wrong ) I may very well mis understand how Iam suppose to do it !

As soon as I figure out why I cant post pics..I will add them ASAP

Thanks Guy's really Appreciate the advise ! Frank
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris H.
post Feb 22 2021, 03:43 PM
Post #13


don't reMember
****

Group: Members
Posts: 3,797
Joined: 2-January 03
From: Chicago 'burbs
Member No.: 73
Region Association: Upper MidWest



I'm running mine flipped the other way. It's a tight fit but works better on that side. You do have to move the battery somewhere else.

This guy made some pretty major mods to his intake:

SVX Samba 1

This guy shaved his down a bit and shortened the rubber tubes that connect to the throttle body (see page 2). I did this as well but not as much. Just remember you only have ONE shot if you do this so be conservative.

Shaved EG33 throttle body

BTW you do need to use all 4 hoses connected to the intake. 2 are connected to the heads for pressure balancing, the other two are for the IAC valve/warmup circuit.

Here's a pic of a really cool custom intake...if only I had the welding skills.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
flmont
post Feb 22 2021, 05:05 PM
Post #14


Senior Member
***

Group: Members
Posts: 859
Joined: 21-October 08
From: Tucson,Az
Member No.: 9,676
Region Association: Southwest Region



Thanks Chris H....I thought about doing that then fiber glassing the back, But, I always thought that the intake was built that way for the max air volume So I was afraid to cut into it incase the engine would not run correctly be cause it wasn't getting the correct amount of air flow at WOT,..if you guys think there's no problem with that then,.I'll wack the back off that intake..LOL
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
flmont
post Feb 22 2021, 05:07 PM
Post #15


Senior Member
***

Group: Members
Posts: 859
Joined: 21-October 08
From: Tucson,Az
Member No.: 9,676
Region Association: Southwest Region



and yes Clay maybe I could get a little bit more if I get it machined..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
flmont
post Feb 22 2021, 05:48 PM
Post #16


Senior Member
***

Group: Members
Posts: 859
Joined: 21-October 08
From: Tucson,Az
Member No.: 9,676
Region Association: Southwest Region



Literati914...what parts are you missing ?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris H.
post Feb 22 2021, 07:08 PM
Post #17


don't reMember
****

Group: Members
Posts: 3,797
Joined: 2-January 03
From: Chicago 'burbs
Member No.: 73
Region Association: Upper MidWest



QUOTE(flmont @ Feb 22 2021, 05:05 PM) *

Thanks Chris H....I thought about doing that then fiber glassing the back, But, I always thought that the intake was built that way for the max air volume So I was afraid to cut into it incase the engine would not run correctly be cause it wasn't getting the correct amount of air flow at WOT,..if you guys think there's no problem with that then,.I'll wack the back off that intake..LOL


Either whack the back off or look at the second link in my post for the other method. Basically what Clay was saying, you trim the throttle body and the snorkel tubes rather than the back. Wouldn't worry about max air flow too much, the Vanagon guys alter their intakes or use smaller ones pretty regularly.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Feb 22 2021, 07:31 PM
Post #18


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,892
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None



QUOTE(Chris H. @ Feb 22 2021, 04:43 PM) *


Here's a pic of a really cool custom intake...if only I had the welding skills.

Attached Image


Turbo setup, flow will be a bit whack.

Get yourself a plastic welder and be done.

Easier to fix plastic than it is to machine an intake or throttle bodies for you at home.

But I guess you can do your first year of apprenticeship like my Father in-law did in Germany to become a machinist. Year One you did everything with a hand file, and learned how each metal reacted.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris H.
post Feb 22 2021, 08:09 PM
Post #19


don't reMember
****

Group: Members
Posts: 3,797
Joined: 2-January 03
From: Chicago 'burbs
Member No.: 73
Region Association: Upper MidWest



Yeah the main pipe would need to be fatter but the design is cool. Rocky Mountain Westy made a nice intake but it was $350. I don’t think they are making it any more.

RMW intake

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Literati914
post Feb 23 2021, 12:19 AM
Post #20


Senior Member
***

Group: Members
Posts: 690
Joined: 16-November 06
From: Dallas, TX
Member No.: 7,222
Region Association: Southwest Region



QUOTE(flmont @ Feb 22 2021, 05:48 PM) *

Literati914...what parts are you missing ?


Well, to start.. I need the Cam Sprocket for the RH side (passengers) and a Crank Pulley.

next, would be - most of the timing belt housings.

Anyone got this stuff?


.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
