> Coil bracket
JamesJ
post Sep 17 2021, 08:38 PM
Post #1


Member
**

Group: Members
Posts: 219
Joined: 30-April 20
From: Sunnyvale, CA
Member No.: 24,202
Region Association: Northern California
Hello All,

My '74 1.8 car has an ignition coil bracket with two holes in it. One is round and the other is square. I believe it to be original. Can anyone tell me if this is an original bracket and what the holes are for?

Thanks,
James

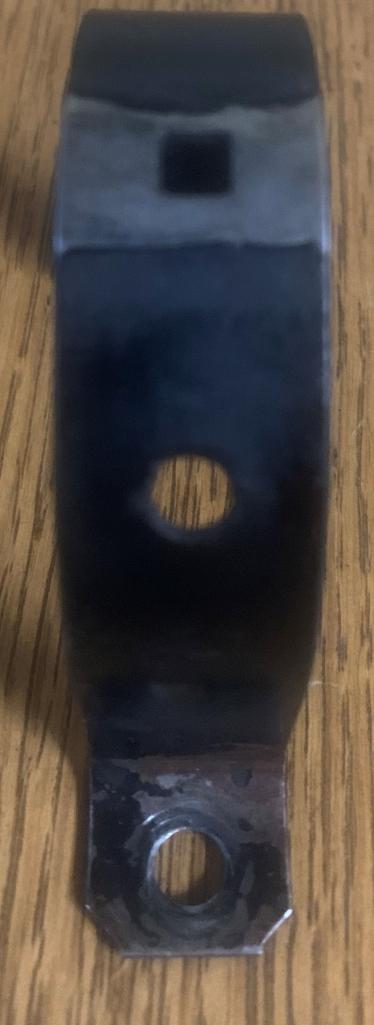

Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
wonkipop
post Sep 17 2021, 09:10 PM
Post #2


Advanced Member
****

Group: Members
Posts: 4,238
Joined: 6-May 20
From: north antarctica
Member No.: 24,231
Region Association: NineFourteenerVille
yes, thats an original coil bracket.
never had to change the coil on mine.
far as i know the holes do nothing and have nothing through them.
the black orig coil on mines got nothing on it in terms of bumps or engaging pins.

dunno why they had the holes.
when you look at a kombi or type 4 its not clear why the holes are there either.
someone may know.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ndfrigi
post Sep 17 2021, 10:31 PM
Post #3


Advanced Member
****

Group: Members
Posts: 2,926
Joined: 21-August 11
From: Orange County
Member No.: 13,474
Region Association: Southern California

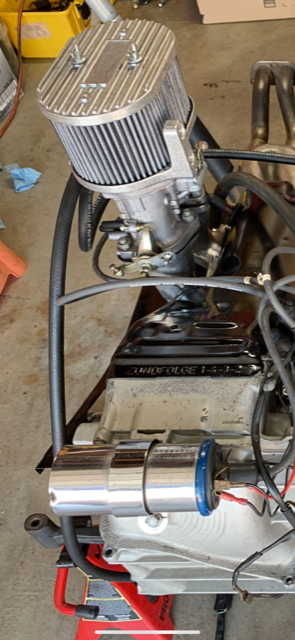

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Sep 18 2021, 08:17 AM
Post #4


914 Guru
*****

Group: Members
Posts: 8,863
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region
My guess is it was an off the shelf item used on another VW product.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NARP74
post Sep 18 2021, 12:07 PM
Post #5


Senior Member
***

Group: Members
Posts: 1,048
Joined: 29-July 20
From: Colorado, USA, Earth
Member No.: 24,549
Region Association: Rocky Mountains
Side note: what hardware is used to mount that coil? I think it is M10 1.0 but what length and head configuration? Any washers, what type? Thanks

It took me many months to find one of those for my project...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Sep 18 2021, 12:18 PM
Post #6


bdstone914
****

Group: Members
Posts: 4,508
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319
QUOTE(NARP74 @ Sep 18 2021, 11:07 AM) *

Side note: what hardware is used to mount that coil? I think it is M10 1.0 but what length and head configuration? Any washers, what type? Thanks

It took me many months to find one of those for my project...


M6 bolt with a flat washer and lock washer. I like to use an allen head bolt as it is hard to access once installed. @narp914
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Sep 18 2021, 12:21 PM
Post #7


bdstone914
****

Group: Members
Posts: 4,508
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319
QUOTE(JamesJ @ Sep 17 2021, 07:38 PM) *

Hello All,

My '74 1.8 car has an ignition coil bracket with two holes in it. One is round and the other is square. I believe it to be original. Can anyone tell me if this is an original bracket and what the holes are for?

Thanks,
James

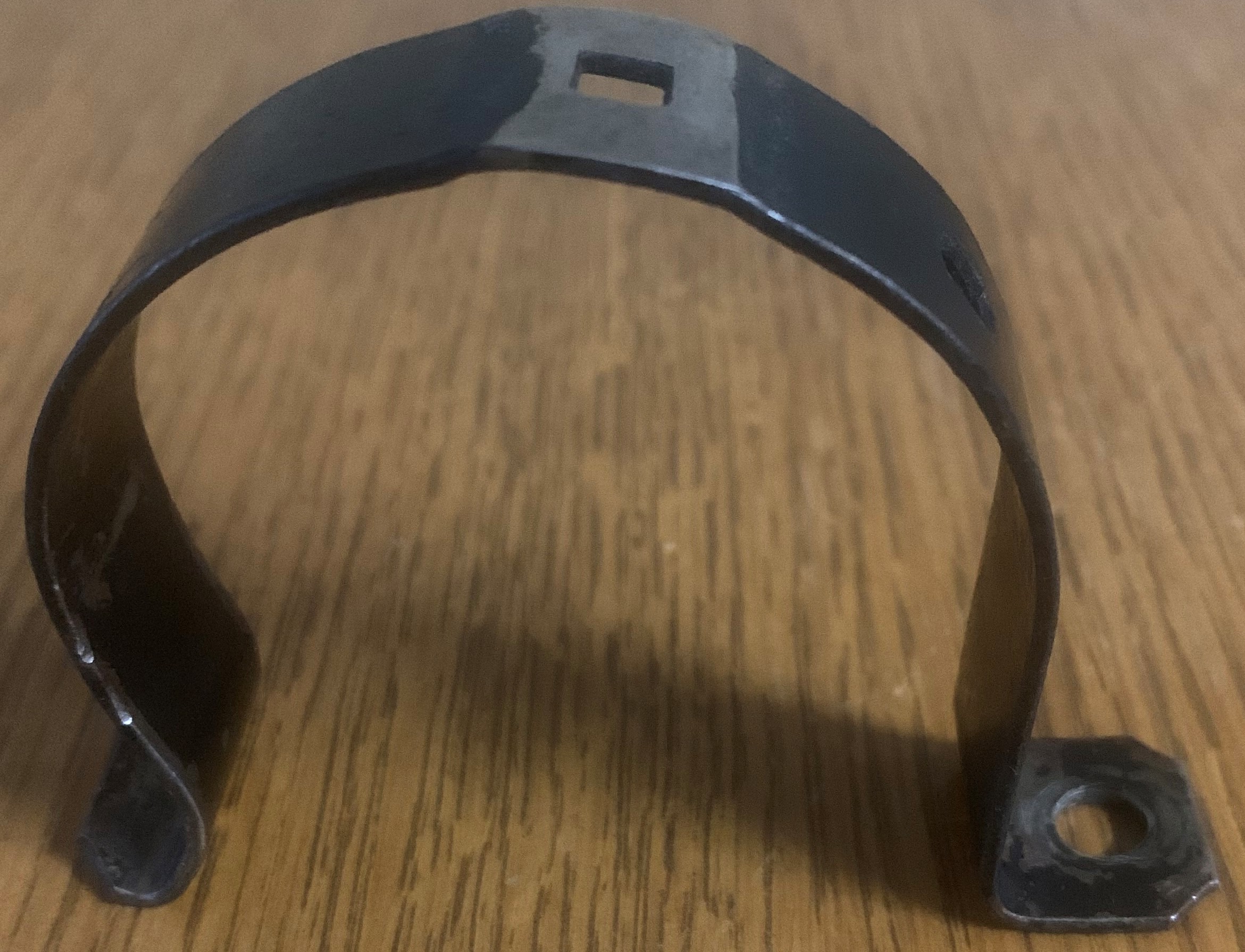

Attached Image

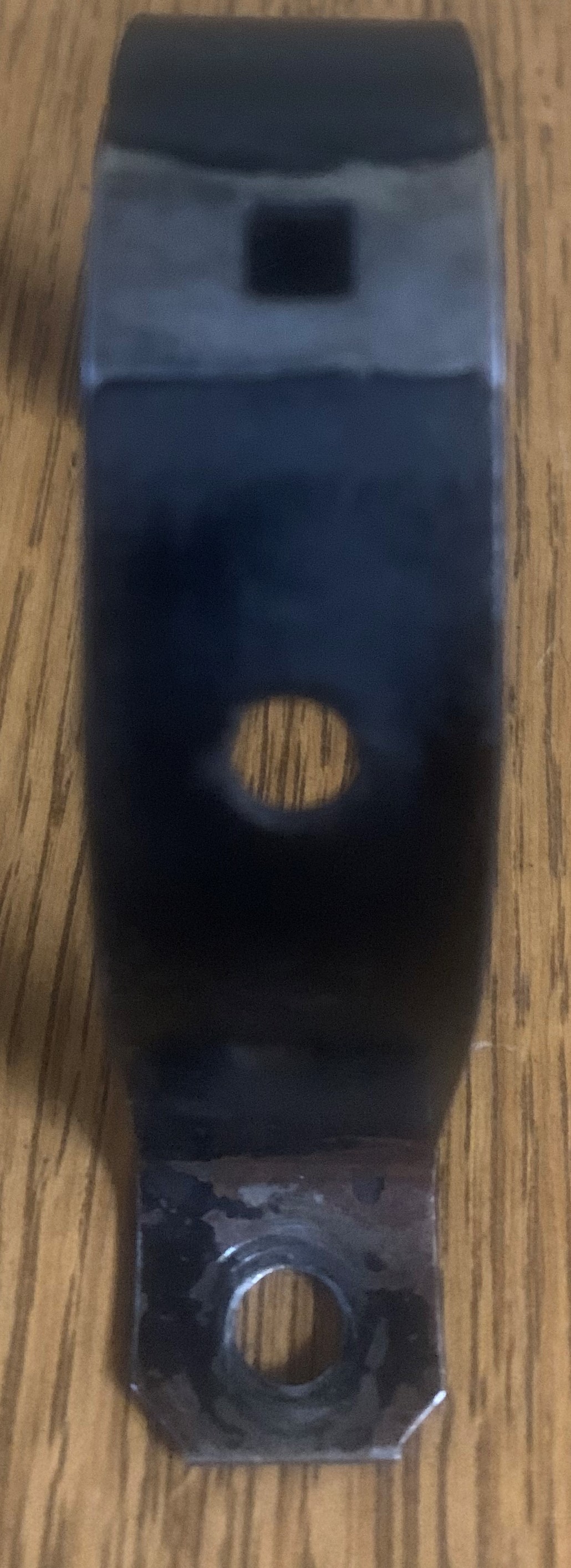

Attached Image

@jamesj
My guess is that the hole located and held the part to form the ends while manufactured. Or speed holes
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Geezer914
post Sep 18 2021, 02:16 PM
Post #8


Geezer914
***

Group: Members
Posts: 1,375
Joined: 18-March 09
From: Salem, NJ
Member No.: 10,179
Region Association: North East States
Lightning holes to save weight.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
wonkipop
post Sep 19 2021, 05:15 AM
Post #9


Advanced Member
****

Group: Members
Posts: 4,238
Joined: 6-May 20
From: north antarctica
Member No.: 24,231
Region Association: NineFourteenerVille
QUOTE(bdstone914 @ Sep 18 2021, 12:18 PM) *

QUOTE(NARP74 @ Sep 18 2021, 11:07 AM) *

Side note: what hardware is used to mount that coil? I think it is M10 1.0 but what length and head configuration? Any washers, what type? Thanks

It took me many months to find one of those for my project...


M6 bolt with a flat washer and lock washer. I like to use an allen head bolt as it is hard to access once installed. @narp914


yeah the nut is brilliantly positioned isn't it?
great if you have a vw. (IMG:style_emoticons/default/mad.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JamesJ
post Sep 20 2021, 05:47 PM
Post #10


Member
**

Group: Members
Posts: 219
Joined: 30-April 20
From: Sunnyvale, CA
Member No.: 24,202
Region Association: Northern California
Thanks everyone. The PET shows a #2 for the 1.7/2.0 and a #2a for the 1.8, but no further explanation. I am curious if anyone has a 1.8 car with an original bracket without holes.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jcd914
post Sep 21 2021, 12:57 AM
Post #11


Advanced Member
****

Group: Members
Posts: 2,081
Joined: 7-February 08
From: Sacramento, CA
Member No.: 8,684
Region Association: Northern California
I have seen the fan housing coil brackets on buses, type 4s and 914s, never seen one without the extra holes.

Jim
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgolia
post Sep 21 2021, 06:16 AM
Post #12


GeoJoe
***

Group: Members
Posts: 703
Joined: 5-February 10
From: PA
Member No.: 11,329
Region Association: North East States
Does anyone have one of those brackets they would like to sell? @bdstone914
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NARP74
post Sep 21 2021, 11:22 AM
Post #13


Senior Member
***

Group: Members
Posts: 1,048
Joined: 29-July 20
From: Colorado, USA, Earth
Member No.: 24,549
Region Association: Rocky Mountains
It's weight savings to keep the 50/50 distribution correct!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Sep 21 2021, 01:30 PM
Post #14


bdstone914
****

Group: Members
Posts: 4,508
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319
QUOTE(rgolia @ Sep 21 2021, 05:16 AM) *

Does anyone have one of those brackets they would like to sell? @bdstone914


@Rgolia

I probably do.
Or you can reshape your tin mounted to fit on the shroud.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NARP74
post Sep 21 2021, 01:33 PM
Post #15


Senior Member
***

Group: Members
Posts: 1,048
Joined: 29-July 20
From: Colorado, USA, Earth
Member No.: 24,549
Region Association: Rocky Mountains
If he does not, try the samba, do a search or a local VW place that has lots of parts stored away. I stumbled onto a place like that and had one moments after I asked.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgolia
post Sep 21 2021, 01:40 PM
Post #16


GeoJoe
***

Group: Members
Posts: 703
Joined: 5-February 10
From: PA
Member No.: 11,329
Region Association: North East States
@bdstone914

I will take it if you do. I modified the one I had and as jerry rigs tend to go the coil and bracket went for a ride in my engine compartment. No damage, but I was on the side of the road for a bit.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Sep 22 2021, 07:05 AM
Post #17


bdstone914
****

Group: Members
Posts: 4,508
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319
QUOTE(rgolia @ Sep 21 2021, 12:40 PM) *

@bdstone914

I will take it if you do. I modified the one I had and as jerry rigs tend to go the coil and bracket went for a ride in my engine compartment. No damage, but I was on the side of the road for a bit.


@rgolia

Measure your coil diameter. There are two sizes. Will see what i come up with.
Bruce
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
StarBear
post Sep 22 2021, 12:45 PM
Post #18


Senior Member
***

Group: Members
Posts: 1,845
Joined: 2-September 09
From: NJ
Member No.: 10,753
Region Association: North East States
QUOTE(JamesJ @ Sep 20 2021, 07:47 PM) *

Thanks everyone. The PET shows a #2 for the 1.7/2.0 and a #2a for the 1.8, but no further explanation. I am curious if anyone has a 1.8 car with an original bracket without holes.

Yep. Have an original 1.8 with original bracket and coil. The two holes are there. Never noticed them before.... (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
