 Instrument lights ground point |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
  |
| Cvrguy |
 Oct 1 2026, 01:15 PM
Post
#1
|
|
Newbie  Group: Members Posts: 47 Joined: 18-September 25 From: Los Angeles Member No.: 28,995 Region Association: None  |
I had all of the instrument lights go out on me recently. Is there a single ground point for them? If so, where is it? I checked the defrost light wire aft of the shifter. That's not the problem.
|
   |

|
| JeffBowlsby |
Oct 1 2026, 01:42 PM
Post
#2
|
|
914 Wiring Harnesses & Beekeeper Group: Members Posts: 9,365 Joined: 7-January 03 From: San Ramon CA Member No.: 104 Region Association: None
|
Probably the ground behind the fuse panel, drivers side. You might also have a dash light subharness that could be disconnected, its not very long, is behind the dash gauges, look for any of the black/blue striped wires to find the common single connector to the main chassis harness.
|
 |
|
| FlacaProductions |
Oct 1 2026, 01:52 PM
Post
#3
|
|
Advanced Member Group: Members Posts: 2,281 Joined: 24-November 17 From: LA Member No.: 21,628 Region Association: Southern California
|
the common black/blue striped line was the one i was going to suggest - it runs thru all the dash lights - if there is a gap "early" in the chain, they all go
|
|
|
|
| emerygt350 |
Oct 2 2026, 06:03 AM
Post
#4
|
|
Advanced Member Group: Members Posts: 3,763 Joined: 20-July 21 From: Upstate, NY Member No.: 25,740 Region Association: North East States |
I had the pot go in my headlight switch. Lost all the dash lights. Rather than muck with it (I mean, they are so damn dim even with LEDs, why a dimmer?) I just bypassed the pot on the switch and have them just full on when I pull the lights.
The pot went before I upgraded to the LEDs. Sadly, you have to pull the knee guard to get at the switch otherwise it would be an easy thing to check. |
|
|
|
| JamesM |
Oct 2 2026, 10:56 AM
Post
#5
|
|
Caretaker of 914s - Master of Fuel Injection Group: Members Posts: 2,318 Joined: 6-April 06 From: Kearns, UT Member No.: 5,834 Region Association: Intermountain Region |
QUOTE(emerygt350 @ Oct 2 2026, 04:03 AM)  I had the pot go in my headlight switch. I find this to be the more common reason to loose dash illumination. the glue holding the wire coil fails, the wire bunches, shorts and magic smoke is released. |
|
|
|
| Cvrguy |
Oct 2 2026, 10:57 AM
Post
#6
|
|
Newbie Group: Members Posts: 47 Joined: 18-September 25 From: Los Angeles Member No.: 28,995 Region Association: None |
thanks to all
|
|
|
|
| Cvrguy |
Oct 2 2026, 11:17 AM
Post
#7
|
|
Newbie Group: Members Posts: 47 Joined: 18-September 25 From: Los Angeles Member No.: 28,995 Region Association: None |

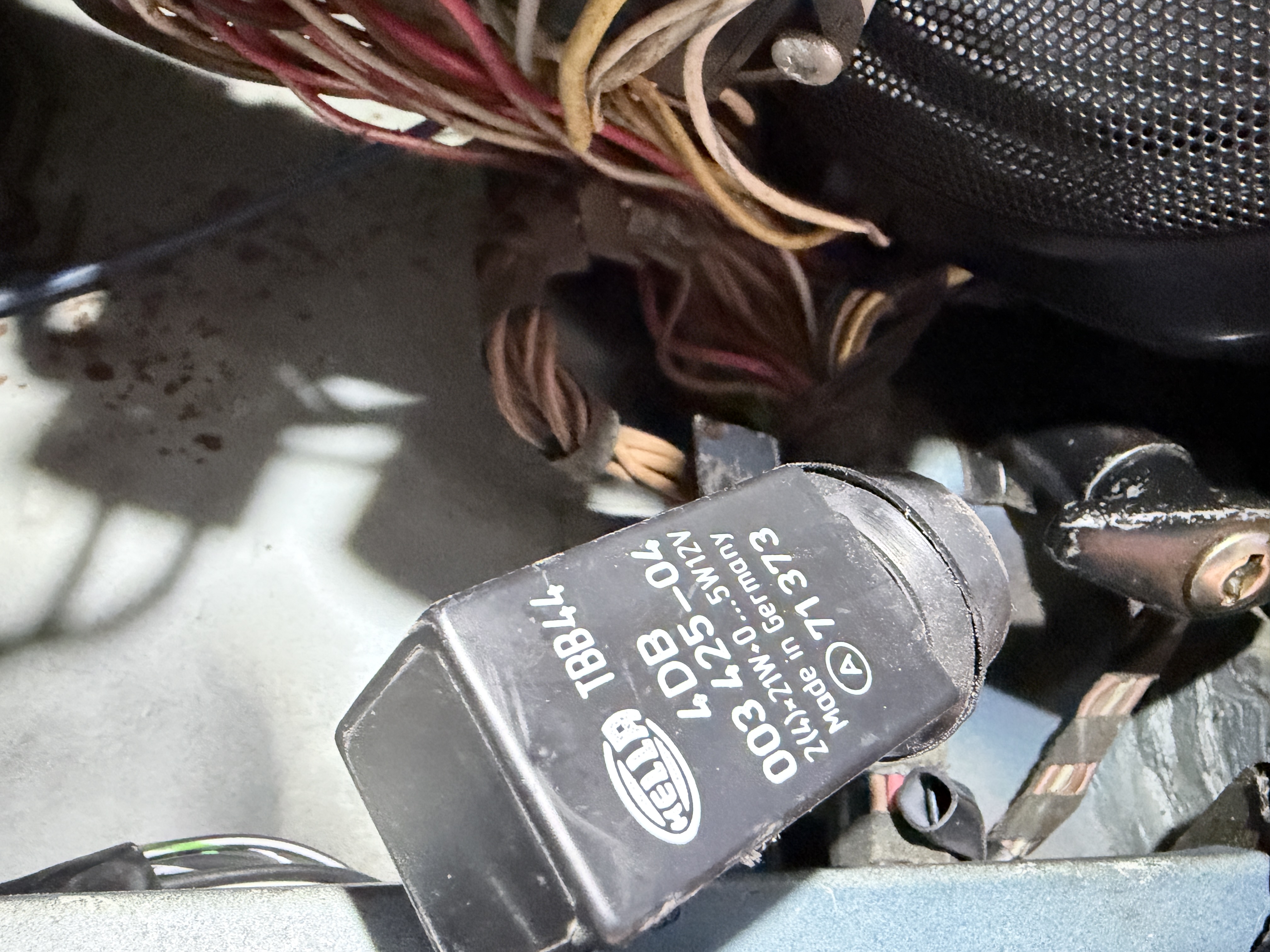

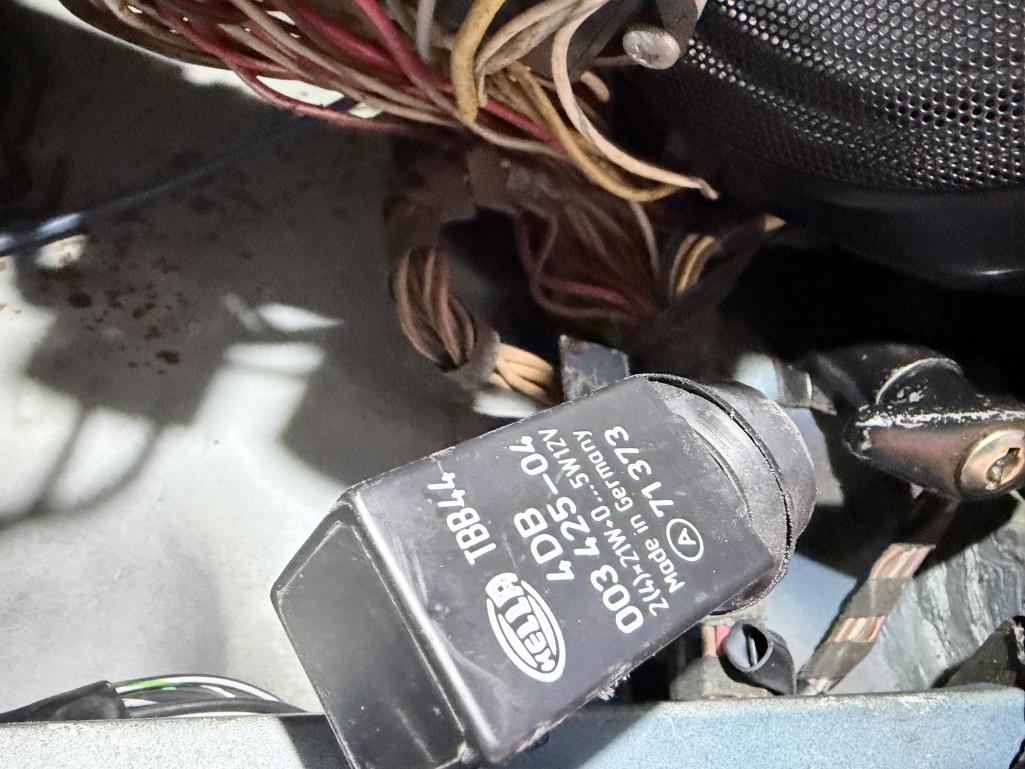

The car came with a JWest fuse panel installed by a PO. When I lowered it, the common ground point was obvious. This rectangular flasher fell out from above the lower bolster. There is also a flasher module on the back of the fuse panel. Any idea which is which? What is the empty relay supposed to feed?
 |
|
|
|
|
