> How I put new speakers in the original grills, Step by step with pictures
johannes
post Jun 23 2006, 06:28 AM
Post #1


Club Porsche 914 France President
****

Group: Members
Posts: 3,084
Joined: 13-January 06
From: France
Member No.: 5,409
Region Association: France
This is a very easy and fast job to do.

My car didn't have the original speakers. I think they are no longuer available.

I bought new 4"x6" speakers. You can now find some very cheap with tweeters included. They are smaller than the original one, so you have to make an adapter.

I made a shape that you can download and print from here :

Download the shape

You must print it with "NO RESIZE" option checked ...

Here we go ...

Download and print the shape. cut it out (the red paper)

The shape works for both left and right speaker ... you just have to reverse it.

(IMG:http://www.914world.com/bbs2/uploads_offsite/img62.imageshack.us-179-1274228396.1.jpg)

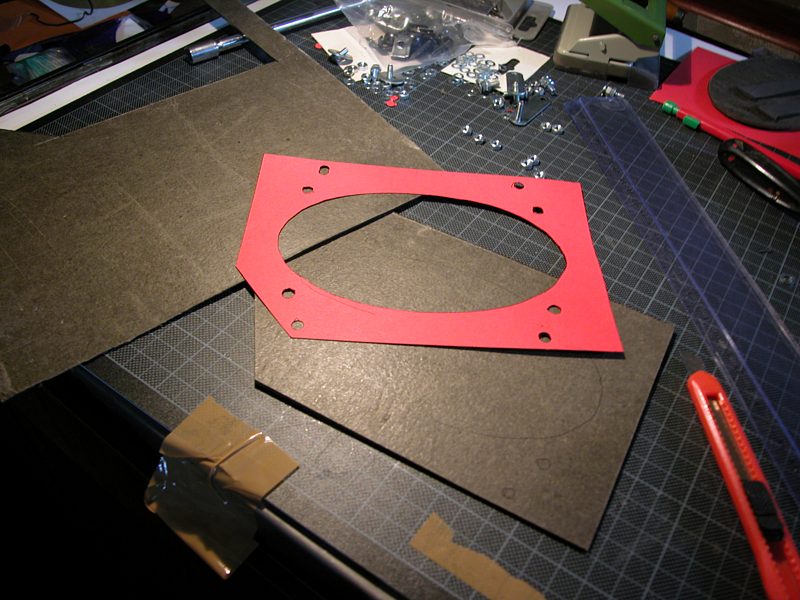

Trace, drill and cut a thick paperboard

(IMG:http://www.914world.com/bbs2/uploads_offsite/img62.imageshack.us-179-1274228396.2.jpg)

Screw the loudspeaker over the paperboard.
I know !!! this red loudspeaker is gonna look ugly in my teener ... but wait and see (IMG:style_emoticons/default/wink.gif)

(IMG:http://www.914world.com/bbs2/uploads_offsite/img57.imageshack.us-179-1274228396.3.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
johannes
post Jun 23 2006, 06:33 AM
Post #2


Club Porsche 914 France President
****

Group: Members
Posts: 3,084
Joined: 13-January 06
From: France
Member No.: 5,409
Region Association: France

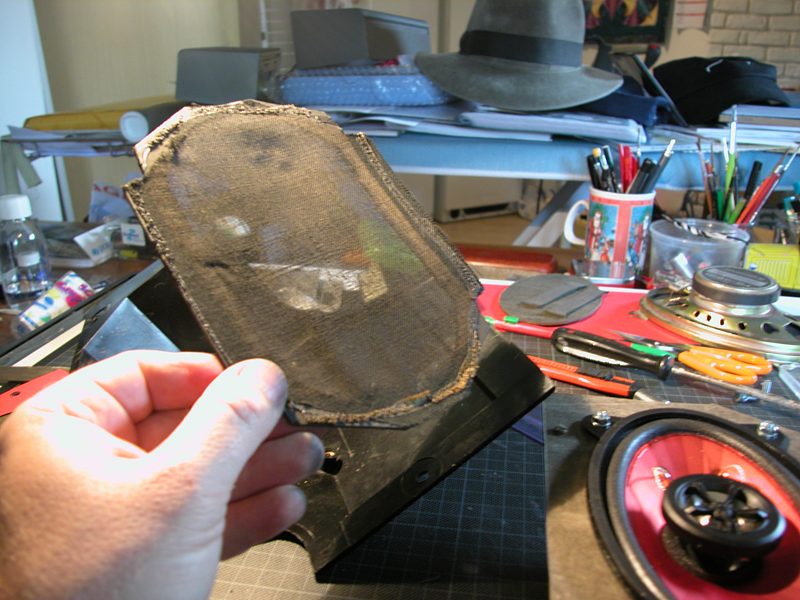

I still had the original sound fabric grill. I washed it but it keeped grey.
I finally painted it with black mat paint. (IMG:style_emoticons/default/biggrin.gif)

(IMG:http://www.914world.com/bbs2/uploads_offsite/img62.imageshack.us-179-1274228363.1.jpg)

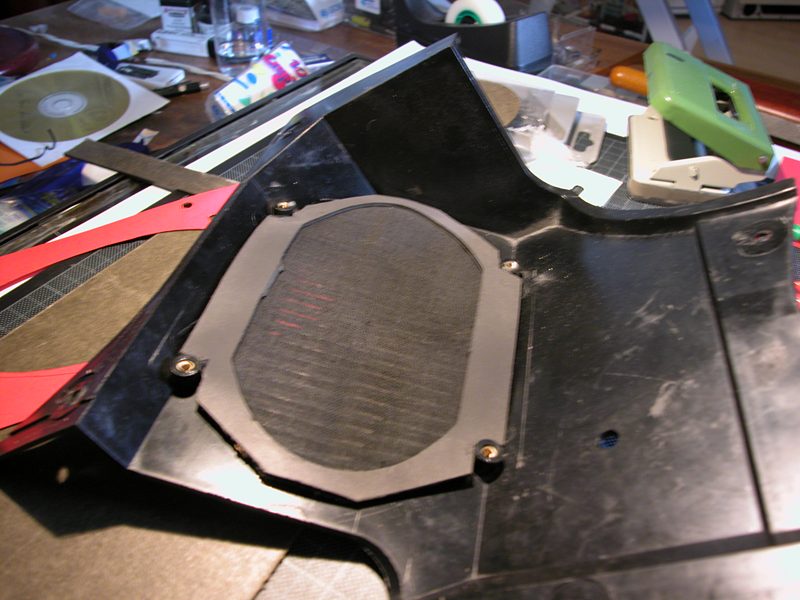

I reshaped it so it fits this way.

(IMG:http://www.914world.com/bbs2/uploads_offsite/img57.imageshack.us-179-1274228363.2.jpg)

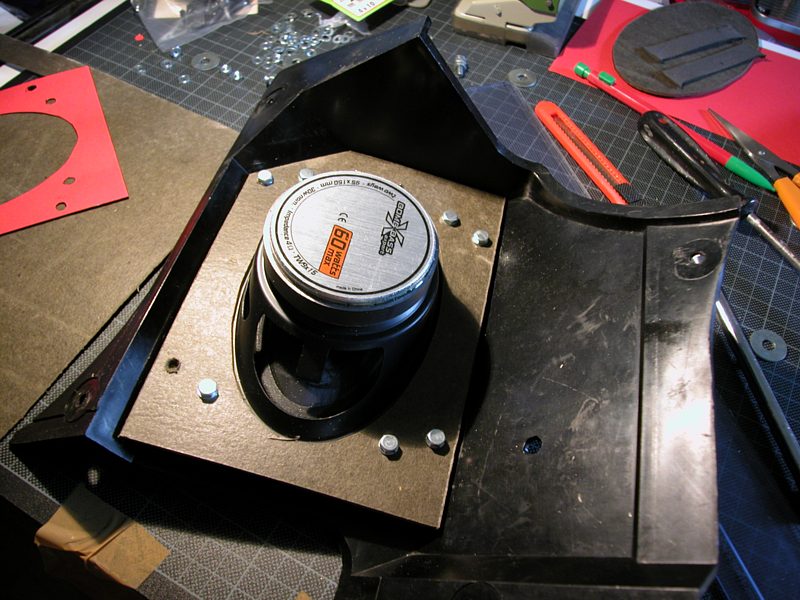

Then screw the adapter to the plastic grill. You will need some metric screws ... Easy to find here ... Don't know if it's easy to find in the USA ... (IMG:style_emoticons/default/sad.gif)

(IMG:http://www.914world.com/bbs2/uploads_offsite/img227.imageshack.us-179-1274228364.3.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
johannes
post Jun 23 2006, 06:37 AM
Post #3


Club Porsche 914 France President
****

Group: Members
Posts: 3,084
Joined: 13-January 06
From: France
Member No.: 5,409
Region Association: France

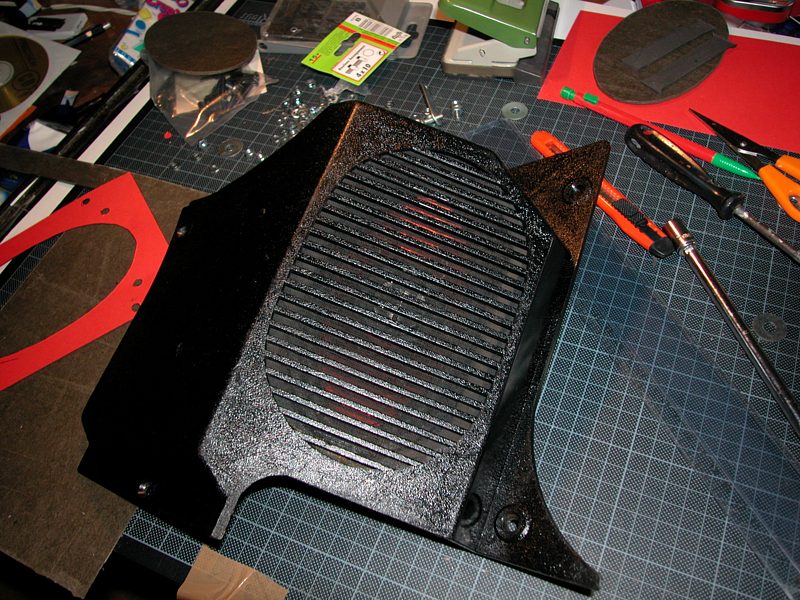

He he ! see , the red loudspeaker is almost unvisible ... (IMG:style_emoticons/default/wub.gif)

(IMG:http://www.914world.com/bbs2/uploads_offsite/img62.imageshack.us-179-1274228472.1.jpg)

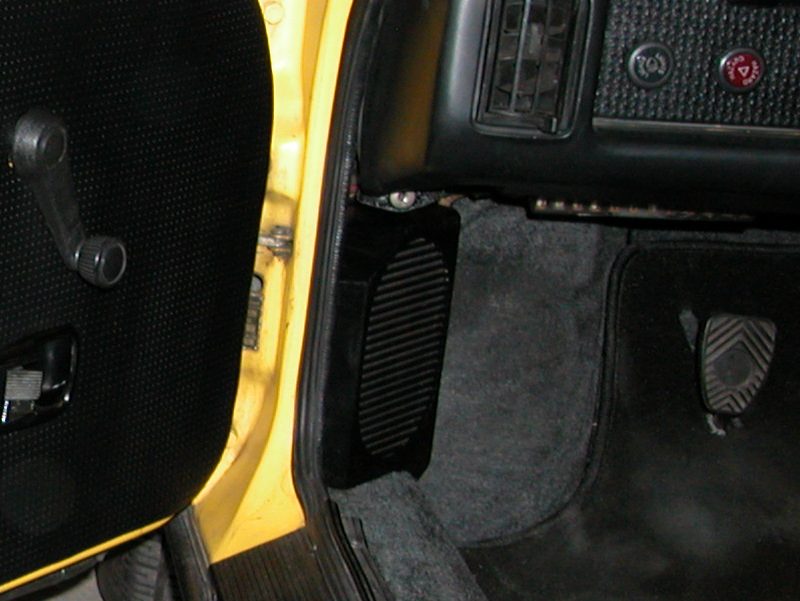

Once in the car, you won't notice (IMG:style_emoticons/default/beerchug.gif)

(IMG:http://www.914world.com/bbs2/uploads_offsite/img227.imageshack.us-179-1274228472.2.jpg)

That's all folks !
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BigDBass
post Jun 23 2006, 07:23 AM
Post #4


Dumb Question Champion
***

Group: Members
Posts: 1,438
Joined: 11-January 06
From: Chicago (south 'burbs)
Member No.: 5,405
Region Association: Upper MidWest
Nice job and thanks for the write-up!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
markb
post Jun 23 2006, 07:25 AM
Post #5


914less :(
*****

Group: Members
Posts: 5,449
Joined: 22-January 03
From: Nipomo, CA
Member No.: 180
Region Association: Central California
(IMG:style_emoticons/default/clap56.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Jun 23 2006, 08:47 AM
Post #6


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
Simply Classic (again).

You do good work. (IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
AZ914
post Jun 23 2006, 08:51 AM
Post #7


914 Dumbass
***

Group: Members
Posts: 1,461
Joined: 6-January 03
From: Sunny Tucson
Member No.: 98
Region Association: Southwest Region
Very Nice!!

This thread and Johannes' door panel thread should go to the classic threads section at some point.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Jun 23 2006, 09:51 AM
Post #8


Custom Member
***************

Group: Members
Posts: 24,645
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
Now,
did you have to crush the heater tube running up behind that speaker???

Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Air_Cooled_Nut
post Jun 23 2006, 10:29 AM
Post #9


914 Ronin - 914 owner who lost his 914club.com
***

Group: Members
Posts: 1,748
Joined: 19-April 03
From: Beaverton, Oregon
Member No.: 584
Region Association: None
Metric fasteners are easy to find, even in The Middle of No-Where (IMG:style_emoticons/default/bootyshake.gif) The local Ace Hardware store is my supplier. If they're out of stock I simply tell Randy and I have 'em in a couple days (IMG:style_emoticons/default/smile.gif)

What gets my goat: The Dellorto carbs on my Squareback are Italian made but use non-metric fasteners (IMG:style_emoticons/default/headbang.gif) Everything on my car is metric except the carbs. Metric is sooooooooooooooooo much easier!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
johannes
post Jun 23 2006, 10:30 AM
Post #10


Club Porsche 914 France President
****

Group: Members
Posts: 3,084
Joined: 13-January 06
From: France
Member No.: 5,409
Region Association: France
QUOTE(r_towle @ Jun 23 2006, 07:51 AM) *

Now,
did you have to crush the heater tube running up behind that speaker???

Rich

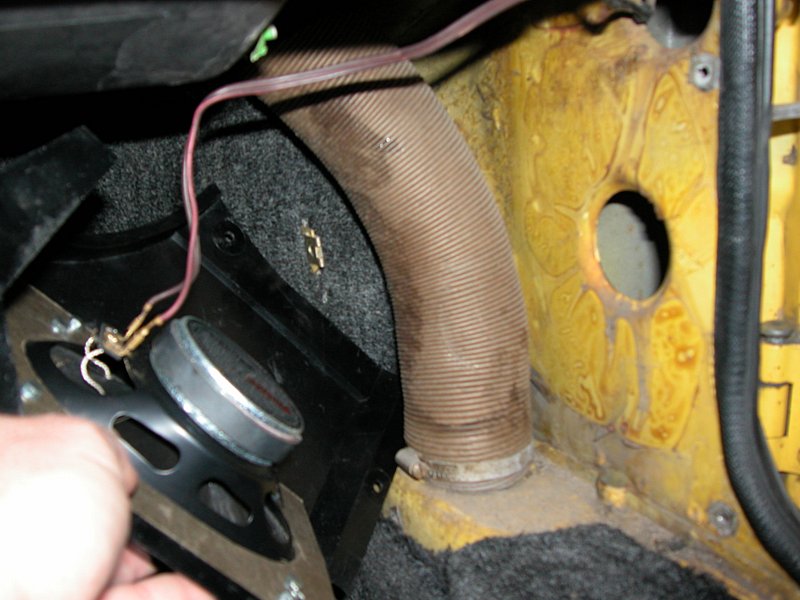

Good question. I didn't notice any problem ... Wait ... I'm gonna unscrew it and take a pic...

It seems there is enough room (IMG:style_emoticons/default/smile.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
horizontally-opposed
post Sep 8 2006, 01:39 PM
Post #11


Advanced Member
****

Group: Members
Posts: 3,445
Joined: 12-May 04
From: San Francisco
Member No.: 2,058
Region Association: None
Searching through old posts, I found this gem.

Has anyone tried this with 5x7s? Will they fit?!?!

And, how is the sound compared to door-mounted speakers?

Have a very nice 4-speaker Boston Acoustics setup now, but thinking about returning the interior to period-correct.

pete
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
horizontally-opposed
post Sep 8 2006, 03:10 PM
Post #12


Advanced Member
****

Group: Members
Posts: 3,445
Joined: 12-May 04
From: San Francisco
Member No.: 2,058
Region Association: None
Oh yeah, and I second the nomination to put this one into the Classics thread

A great post! (IMG:style_emoticons/default/clap56.gif) (IMG:style_emoticons/default/clap56.gif) (IMG:style_emoticons/default/clap56.gif) (IMG:style_emoticons/default/clap56.gif) (IMG:style_emoticons/default/clap56.gif)

pete
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
johannes
post Sep 8 2006, 03:43 PM
Post #13


Club Porsche 914 France President
****

Group: Members
Posts: 3,084
Joined: 13-January 06
From: France
Member No.: 5,409
Region Association: France
QUOTE
Searching through old posts, I found this gem.

Has anyone tried this with 5x7s? Will they fit?!?!

And, how is the sound compared to door-mounted speakers?

Have a very nice 4-speaker Boston Acoustics setup now, but thinking about returning the interior to period-correct.

pete

I didn't test with 5X7 ... but I think they wont fit because of depth issues. Original speakers had inverted magnets (magnet on the font and not in the rear)...

Sound is crappy because of no volume behind the speaker so don't expect any bass ... sound with door speakers is better but I hate holes in the doors.

For bass you can build or buy a center console with speakers http://stores.ebay.com/Appearance-and-Performance
or fit a subwoofer under the passenger feet http://www.autoatlanta.com/tech/subwoofer.html

The thread is already in the classics ... (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DBCooper
post Sep 8 2006, 04:49 PM
Post #14


14's in the 13's with ATTITUDE
****

Group: Members
Posts: 3,079
Joined: 25-August 04
From: Dazed and Confused
Member No.: 2,618
Region Association: Northern California
The color shouldn't be a problem. If you don't like the red showing through (some people like it) you can put a light coat of flat black on the speaker itself without hurting it or affecting the sound. I said a LIGHT coat.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jrmole
post Oct 27 2006, 06:59 PM
Post #15


Torque is cool!
**

Group: Members
Posts: 93
Joined: 5-September 05
From: Los Angeles, CA area
Member No.: 4,752


I love the idea, but your template link is broken! Can you e-mail me the file? I can post it somewhere for others to pick it up.

Thanks.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
johannes
post Nov 13 2006, 08:35 AM
Post #16


Club Porsche 914 France President
****

Group: Members
Posts: 3,084
Joined: 13-January 06
From: France
Member No.: 5,409
Region Association: France
Link is fixed ...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Nov 13 2006, 08:29 PM
Post #17


Get that VIN ?
*****

Group: Members
Posts: 9,511
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
(IMG:style_emoticons/default/biggrin.gif) Thanks. This should be a classic
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PinetreePorsche
post Nov 15 2006, 08:13 AM
Post #18


Member
**

Group: Members
Posts: 235
Joined: 14-November 05
From: Falls Church, VA
Member No.: 5,124
Q. for J. the speakerman: Loved the post, but all the 4x6's I've seen are junk. Yours look pretty good, but I can't read the print on them. What brand are they, where did you buy them? -Chris "PinetreePorsche"
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
johannes
post Nov 15 2006, 08:38 AM
Post #19


Club Porsche 914 France President
****

Group: Members
Posts: 3,084
Joined: 13-January 06
From: France
Member No.: 5,409
Region Association: France
They are kind of chineese junk too ... But you can find 4X6 from Pioneer or Alpine that are better. Only take a look at the magnet. This shouldn't be too large.

If you want to spend more $, you better buy Speakers with adapter plates ($45) from Appearence and Performance
http://www.914world.com/bbs2/index.php?showtopic=58394
They have it also on ebay http://stores.ebay.com/Appearance-and-Performance
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gint
post Nov 2 2008, 02:23 PM
Post #20


Mike Ginter
***************

Group: Admin
Posts: 16,094
Joined: 26-December 02
From: Denver CO.
Member No.: 20
Region Association: Rocky Mountains
Moved to the Lapuwali Classic Thread Forum.
